Re: Build Shit - DIY - What's On Your Bench?
My first contact-mic, a shaker-box and a dirt-simple white-noise-generator (has a little top-squeal, but that's ok).
- Soloman Tump
- Merzwow
- Posts: 531
- Joined: Mon Dec 23, 2019 5:30 am
- Location: Devon, UK
- Has thanked: 277 times
- Been thanked: 330 times
- Contact:
Re: Build Shit - DIY - What's On Your Bench?

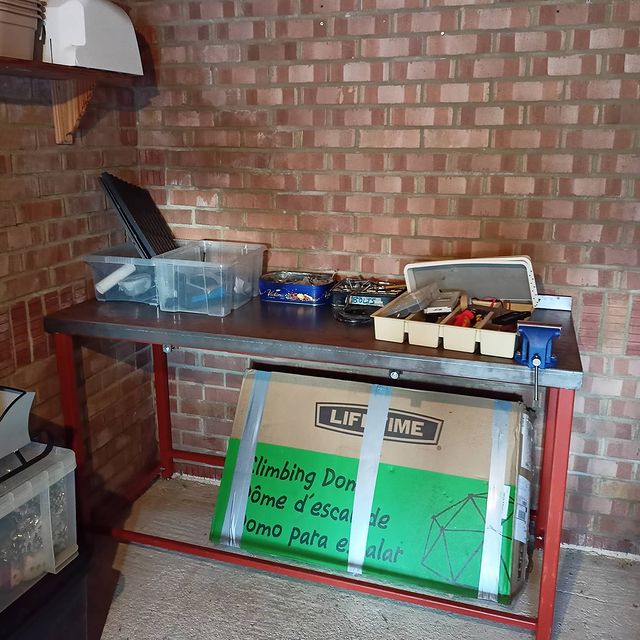

So now I can BUILD SHIT ON IT
Got a load of racks and shelves to put up, and a strip light to go on the wall.
Dismal electronics from Devon
https://intrusivesignals.blogspot.com/
https://intrusivesignals.blogspot.com/
- Indeterminacy
- Merzwowow
- Posts: 855
- Joined: Mon Jan 06, 2020 8:45 am
- Location: B-52D Tail Gunner
- Has thanked: 3 times
- Been thanked: 272 times
Re: Build Shit - DIY - What's On Your Bench?
A dedicated bench is a thing of beauty.
Carve the date and your initials in it.
Volume is a fantastic thing,
Power and volume - Pete Townshend
Power and volume - Pete Townshend
- -NRRRRK-
- Noise Person
- Posts: 16
- Joined: Mon Jan 11, 2021 4:36 am
- Has thanked: 5 times
- Been thanked: 7 times
Re: Build Shit - DIY - What's On Your Bench?
Had all the parts needed anyway, it's a fun-built and after a first try I can say it is pretty useful. Got to add a little more modulation-pedals to the line-up though.
- Indeterminacy
- Merzwowow
- Posts: 855
- Joined: Mon Jan 06, 2020 8:45 am
- Location: B-52D Tail Gunner
- Has thanked: 3 times
- Been thanked: 272 times
Re: Build Shit - DIY - What's On Your Bench?
From the O3 generator post I made
Goddamnit.
The arc burned through and the plate said later.Indeterminacy wrote: ↑Sun Jan 03, 2021 12:13 pm
These images show the plate behind the fan.
The pin prick of light is an arc burning through the plate.
This one has about 2000 hours of use.
Goddamnit.
Volume is a fantastic thing,
Power and volume - Pete Townshend
Power and volume - Pete Townshend
- crochambeau
- Merzwow
- Posts: 620
- Joined: Fri Nov 22, 2019 11:21 am
- Location: Cascadia
- Has thanked: 252 times
- Been thanked: 189 times
- Contact:
Re: Build Shit - DIY - What's On Your Bench?
Those fingers look like conductive paths etched/adhered/plated over a ceramic substrate. Am I close?Indeterminacy wrote: ↑Tue Mar 02, 2021 11:56 am The arc burned through and the plate said later.
Goddamnit.
Would scratching off the arcing finger have extended the lifespan at reduced efficiency?
Some sort of thermal cut-off could also be employed, if this is a technology suited to forever usage. I wonder how hard that little plug-in module would be to fabricate.
- crochambeau
- Merzwow
- Posts: 620
- Joined: Fri Nov 22, 2019 11:21 am
- Location: Cascadia
- Has thanked: 252 times
- Been thanked: 189 times
- Contact:
Re: Build Shit - DIY - What's On Your Bench?
Preamp based on the Jensen 918 discrete transistor operational amplifier.
Some output trickery involving a "summed" math trace on the scope, transformer output on bottom, "direct" output on top, with math in the middle. The ringing you see on the transformer output is a resonance around 100 kHz due to complete lack of compensation. Frequency response holds to about 100 kHz, whereupon the transformer output climbs wildly for several thousand Hertz bandwidth before everything starts dropping off significantly in the 130 kHz region.
Anyway, the unpopulated PCB is a DC to DC SMPS that will take a standard 9 volts and supply bipolar power in a region of my choosing. I think I'm going to go with +/- 18 volts on this one.
Some output trickery involving a "summed" math trace on the scope, transformer output on bottom, "direct" output on top, with math in the middle. The ringing you see on the transformer output is a resonance around 100 kHz due to complete lack of compensation. Frequency response holds to about 100 kHz, whereupon the transformer output climbs wildly for several thousand Hertz bandwidth before everything starts dropping off significantly in the 130 kHz region.
Anyway, the unpopulated PCB is a DC to DC SMPS that will take a standard 9 volts and supply bipolar power in a region of my choosing. I think I'm going to go with +/- 18 volts on this one.
- timdrage
- Noise Artist
- Posts: 250
- Joined: Sat Nov 23, 2019 10:21 am
- Has thanked: 2 times
- Been thanked: 90 times
Re: Build Shit - DIY - What's On Your Bench?
Finally got round to figuring out the command line stuff I had to do to update my GBxCart and get it working again, so now can flash obscure music roms over cheap aliexpress fake gameboy carts once more
- FAP
- Merzwow
- Posts: 647
- Joined: Wed Jan 08, 2020 11:50 am
- Has thanked: 133 times
- Been thanked: 282 times
Re: Build Shit - DIY - What's On Your Bench?
circuit bent Homedics Body Basics white noise machine
MODS:
-new paint job (pour painting)
-1/4” output (no more speaker)
-toggle pitch pot: between approx. 2x faster to 3.5x slower than stock resistor
-status LED (on/off)
-overdrive/distortion
-“chopper” effect: a hidden LED bridged between two nodes of the volume pot creates this odd repetitive pulse pattern that “chops” up the sound
-“purée” effect: sort of like a hi-pass filter, adds some flavors and subtracts others
-reset button
-pitch contacts: volatile experimental feature that opens the door to glitches and crashes, can only be initiated in the normal pitch mode but can be further controlled by the pitch pot and other parameters after initiation.
Will definitely change how I do pour painting from now on, including but not limited to:
-using a higher quality masking or painters tape that does a better job at sealing-off areas I don’t want to be painted
-keeping the amount of paint poured to a minimum, in order to avoid the fingernail-thick layer I ended up with here
-higher quality paints, or possibly a high quality sealant/fixative, to avoid paint peeling.
I did spray it with some primer before painting, though, and that shit worked amazing.
Pro tip: save painting (pour or spray or whatever) for LAST: solder every component and plan component layout beforehand, then test it to make sure it all works, mount the components as if you were going to seal the deal without a paint job, test again, the disassemble and carefully place somewhere you can get back to it later. Doing all this saves a lot of time and headaches when putting everything together: you’ve already done the bulk of the debugging so less time spent trying to solder shit in tight spaces or trying to diagnose dumb problems (though of course things can still go wrong even after triple-checked crossed Ts and dotted is).
